Additional renderings and diagrams have been revealed for the proposed overhaul of the Port Authority Bus Terminal in Midtown, Manhattan. Designed by Lord Norman Foster of Foster + Partners and Epstein as a joint venture for the Port Authority of New York and New Jersey (PANYNJ), the $10 billion project will replace the 74-year-old, 2.1-million-square-foot structure spanning two city blocks between Eighth and Ninth Avenues and West 40th and 42nd Streets. The City Planning Commission has just begun the Uniform Land Use Review Procedure (ULURP) to hear from the public and local community.

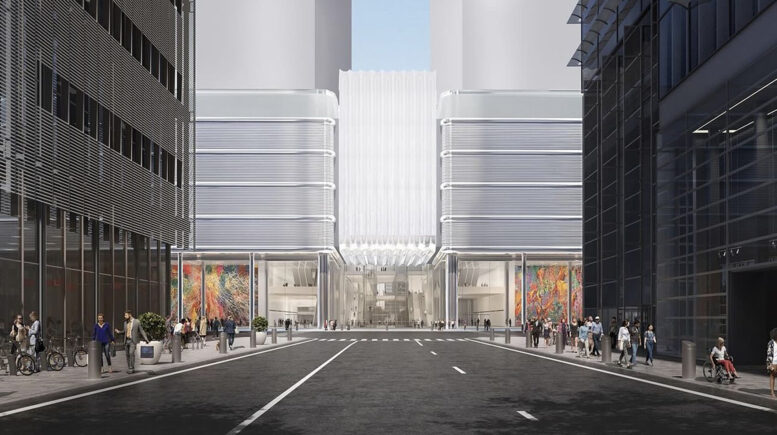

The rendering above depicts a street-level perspective looking west at the center of the terminal from West 41st Street, which will no longer cut through the building. Instead, the passageway will be replaced with a glass-enclosed atrium and towering concourse.
The following image shows the southwestern corner at the intersection of West 40th Street and Ninth Avenue, highlighting part of the sleek exterior. The upper floors are clad in chrome screens with large tubular beams lining each floor plate, while the lower portion of the building features contrasting rectangular steel frames surrounding floor-to-ceiling glass for the retail storefronts.
Rendering courtesy of the New York City Department of Planning
The below rendering depicts the southeastern corner at West 40th Street and Eighth Avenue, giving a different perspective of the sprawling lobby for one of the two office towers planned to rise directly above the terminal. The underside of the spacious colonnade aesthetically complements the reflective surfaces cladding the outer columns and walls.
Rendering courtesy of the New York City Department of Planning
A close-up of the retail space is shown below.
Rendering courtesy of the New York City Department of Planning
The last new rendering offers a street-level perspective of the southern face of the terminal from one of the proposed public parks to be constructed above Dyer Avenue. The green space is envisioned to cover the vehicular ramps leading to and from the Lincoln Tunnel.
Rendering courtesy of the New York City Department of Planning
The following diagrams highlight the network of elevated bus ramps and portions of the temporary staging structure that is expected to be constructed between Ninth and Tenth Avenues and West 39th and West 40th Streets. All three illustrations show a significant increase in the clearance between street level and the underside of the ramps.
Rendering courtesy of the New York City Department of Planning
Rendering courtesy of the New York City Department of Planning
Rendering courtesy of the New York City Department of Planning
The below renderings from our last update highlight the exterior and the atrium, which will provide access to the 42nd Street-Port Authority Bus Terminal served by the A, C, and E trains.
Rendering of the new Midtown Bus Terminal, courtesy of Port Authority of New York and New Jersey
Rendering courtesy of the Port Authority of New York and New Jersey.
Port Authority believes the terminal modernization will be necessary to meet the bus ridership forecast for 2040 trans-Hudson commuters and intercity bus passengers for services operating within the terminal. In the process, the agency aims to improve bus storage and staging to reduce bus idling, relieve street congestion, and improve bus network reliability.
If necessary approvals are secured, the new terminal will be built in three phases. The first stage, from 2024 to 2028, will include erecting new ramps, structurally decking over Dyer Avenue, and constructing the temporary storage and staging facility. Phase two will last from 2029 to 2032 and involve the construction of the new terminal, during which time the storage and staging facility will serve as the hub of operations. The final phase will commence afterward and add the public green space to the Dyer Avenue deck and the two privately developed office towers to the complex.
The project is expected to yield five floors for all buses, including 40 gates for intercity buses; a significant increase in bus storage from the current 50 slots to between 300 and 350 bus spots for midday capacity; a grand central atrium; retail space measuring 155,344 square feet, up from the existing 69,365 square feet; taller ceiling heights and electric charging stations for buses; and two office skyscrapers rising 926 and 1,346 feet high with a maximum floor area of 5.0 MSF, or a Floor Area Ratio of 18.
The new terminal is expected to be completed around 2032.
